Endura Hi-Tech Wrap construction ‘HEXA’Hexagonal Belts :

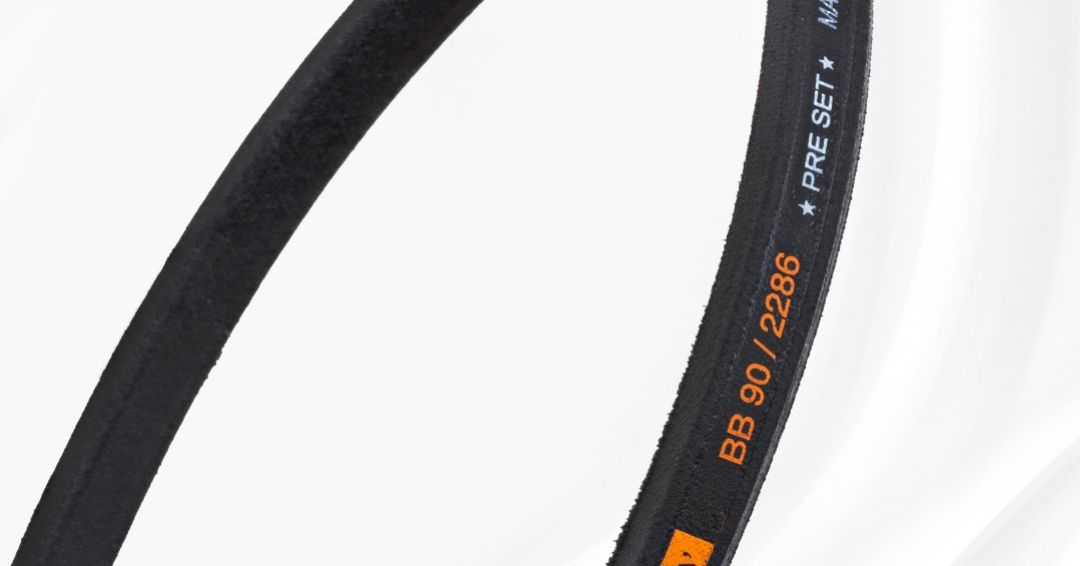

Endura Hi-Tech 'HEXA' V belts are ideally suited for serpentine drives where power needs to be transmitted equally from both sides of the belt. Centrally located cord and special synthetic rubber compounds ensure long V belt life and smooth, capable horsepower capacity.

Feautres

Dual-sided classical profile.

High-strength tensile members.

Engineered rubber compound-impregnated envelope. • Engineered rubber cushion and insulation.

Oil, heat, ozone, and abrasion resistant.

Precise control on construction.

V-BELTS

Request a Call Back

0120 242 1466

Construction Functions
Cover fabric Protects the inner parts of belts and strong abrasion resistance on the pulley groove.
Top cushion rubber Specially designed high modulus top cushionMaintains belt flexibility and to support reverse idler
Tension member Specially designed Tension member is the Primary material for length retention.
Adhesive rubber Specially designed bottom cushion Supports and protects tension member from fraying.
Bottom compression rubber High modulus compression rubber Maintains belt shape&Improves power transmission.

Length Designation: Le (effective length in mm)

Applications : Used on drives having one or more reverse bends and usually where power must be transmitted to or from the belt in both usual and reverse positions.

Endura Hi-Tech 'CORE' Wedge V belts are specially suitable for drives with high belt speeds and are used in industrial and agricultural machinery. Since they need up to 50% smaller pulley widths than classical sections, this allows for a substantial size reduction in drives. These belts are resistant to oil and heat and are antistatic. .

These belts are gaining popularity on all the upcoming industrial applications from lightly loaded drives like pumps and heavily loaded stone crusher drives because it helps to run the drive with less belts there by reducing cost of the drive and improving transmitting efficiency.

Available in SPA, SPB, SPC and SPZ sections.

Endura Hi-Tech 'CORE' Narrow section belts are designed to enhance power transmission efficiency by giving even stress over tension member with a special sectional shape of narrower top width and taller height, special raw material and production technique.

Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. Narrow belts are recommended for machine exported to/from countries such as the USA and Canada where these belts profiles are standardized and used. Manufactured in accordance with RMA IP 22 standards.

Available in 3V, 5V and 8V sections.
